Color
Natural
Orientation
Right-Hand
Product Name
American Vintage II 1963 Telecaster® Neck, 21 Vintage Tall Frets, 7.25" Radius, Rosewood
Series
American Vintage II

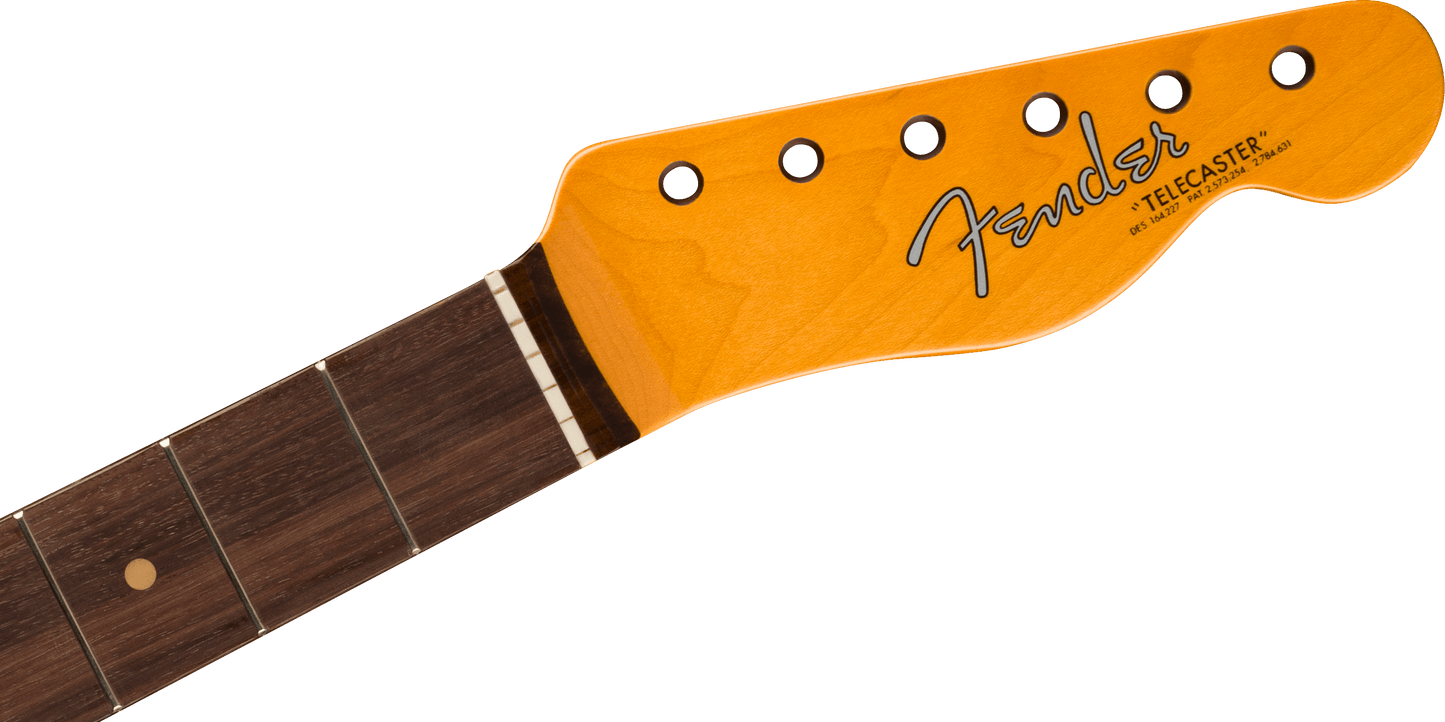

American Vintage II 1963 Telecaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Rosewood
Regular price
949,00 €
Regular price
949,00 €
Sale price
Unit price
per
inc. VAT*
American Vintage II 1963 Telecaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Rosewood
American Vintage II 1963 Telecaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Rosewood
Regular price
949,00 €
Regular price
949,00 €
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 49€. Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
In vintage years, the shape and thickness of Fender guitar necks varied tremendously. The American Vintage II Series features authentic neck profiles from Fender's past. Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Vintage II 1963 Telecaster guitar neck features a "C"-shaped profile and 7.25"-radius round-laminated rosewood fingerboard with clay dots (narrow-spaced at the 12th fret) and 21 vintage-tall frets.
The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing and a lacquer finish offers a vintage feel. This replacement neck is the perfect way to give your Tele® an authentically '60s feel.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Round-laminated rosewood fingerboard with 7.25" radius
- 1963 "C" neck profile
- 21 vintage-tall frets
- Bone nut
- Gloss nitrocellulose lacquer finish
- Vintage-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage Tall
Fret Wire Dimensions
0.083" (H) x 0.045" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Vintage
Neck
Fingerboard Material
Round-Laminated Rosewood
Fingerboard Radius
7.25" (184.1 mm)
Neck Binding
None
Neck Finish
Gloss Nitrocellulose Lacquer
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
1963 "C"
Neck Thickness
1st Fret - .825" (20.95 mm), 12th Fret - .975" (24.76 mm)
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Clay Dot
Side Dots
Vintage Clay
String Nut
Bone
Truss Rod
Vintage-Style Butt Adjust
Truss Rod Nut
Vintage-Style Slotted
