Color
Natural
Orientation
Right-Hand
Product Name

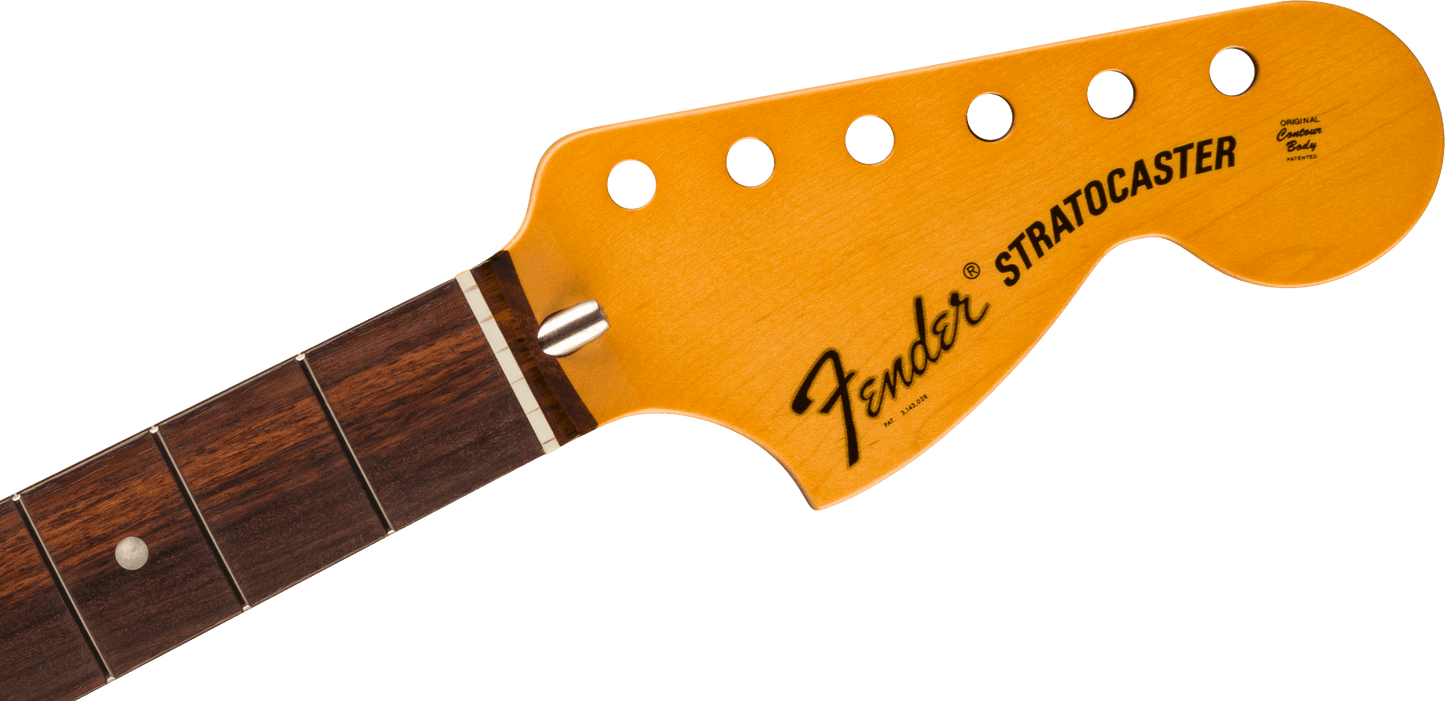

American Vintage II 1973 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Rosewood
Series
American Vintage II
American Vintage II 1973 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius
Regular price
899,00 €
Regular price
899,00 €
899,00 €
Sale price
Unit price
per
RRP inc. VAT*
American Vintage II 1973 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius
American Vintage II 1973 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius
Model #:
0990270921
Regular price
899,00 €
Regular price
899,00 €
899,00 €
Sale price
Unit price
per
RRP inc. VAT*
- Round-laminated rosewood or maple with 7.25" radius
- 1973 "C" neck profile
- 21 vintage-tall frets
- Bone nut
- Gloss polyurethane finish
- Bullet-style truss rod with Micro-Tilt™ adjustment
Couldn't load pickup availability
Details
Summary
Overview
In vintage years, the shape and thickness of Fender guitar necks varied tremendously. The American Vintage II Series features authentic neck profiles from Fender's past. Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Vintage II 1973 Stratocaster guitar neck features a '73 "C"-shaped profile and 7.25"-radius round-laminated rosewood or maple fingerboard with 21 vintage-tall frets. The large '70's headstock and 3 bolt neck design with Micro-Tilt™ mechanism add the finishing touches to this vintage-style neck.
The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing and a gloss polyurethane finish offers a vintage feel. This replacement neck is the perfect way to give your Strat® an authentically '70s feel.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Round-laminated rosewood or maple with 7.25" radius
- 1973 "C" neck profile
- 21 vintage-tall frets
- Bone nut
- Gloss polyurethane finish
- Bullet-style truss rod with Micro-Tilt™ adjustment
Specs
General
Hardware
Tuner Mounting Config
'70s Vintage-Style 2-Screw
Measurements
Fret Size
Vintage Tall
Fret Wire Dimensions
0.083" (H) x 0.045" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage
Neck
Fingerboard Material
Round-Laminated Rosewood
Fingerboard Radius
7.25" (184.1 mm)
Neck Binding
None
Neck Finish
Gloss Polyurethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3-Bolt with Micro-Tilt
Neck Shape
1973 "C"
Neck Thickness
1st Fret - .850" (21.59 mm), 12th Fret - .910" (23.11 mm)
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Pearloid Dot
Side Dots
White
String Nut
Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
Specs
General
Color
Natural
Orientation
Right-Hand
Product Name
American Vintage II 1973 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Maple
Series
American Vintage II
Hardware
Tuner Mounting Config
'70s Vintage-Style 2-Screw
Measurements
Fret Size
Vintage Tall
Fret Wire Dimensions
0.083" (H) x 0.045" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Binding
None
Neck Finish
Gloss Polyurethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3-Bolt with Micro-Tilt
Neck Shape
1973 "C"
Neck Thickness
1st Fret - .850" (21.59 mm), 12th Fret - .910" (23.11 mm)
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
