Color
Natural
Orientation
Right-Hand
Product Name

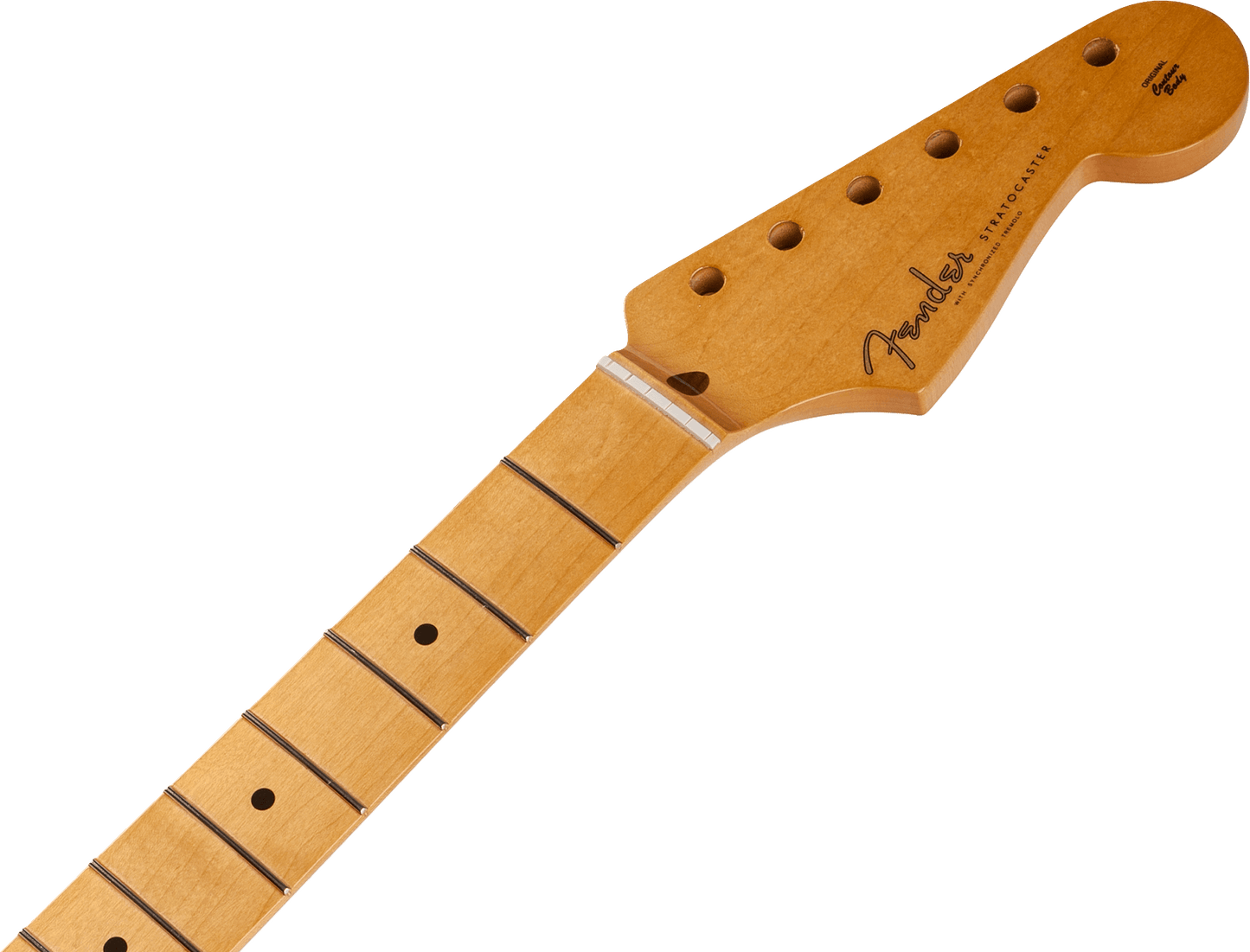

Classic Series 50's Stratocaster® Soft V Neck, 21 Vintage Frets, Maple
Series
Necks
Classic Series 50's Stratocaster® Soft V Neck, 21 Vintage Frets - Maple
Regular price
399,00 €
Regular price
399,00 €
399,00 €
Sale price
Unit price
per
RRP inc. VAT*
Classic Series 50's Stratocaster® Soft V Neck, 21 Vintage Frets - Maple
Classic Series 50's Stratocaster® Soft V Neck, 21 Vintage Frets - Maple
Model #:
0991002921
Regular price
399,00 €
Regular price
399,00 €
399,00 €
Sale price
Unit price
per
RRP inc. VAT*
- Maple neck with walnut "skunk" stripe
- Maple fingerboard with 7.25" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- 3/16" truss rod nut
- Six tuning machine holes designed to fit vintage-style two-screw-mount tuning machines
Couldn't load pickup availability
Details
Summary
Overview
50s-style Genuine Replacement Neck
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Stratocaster® guitar maple neck features a comfortable "soft V" profile and 7.25"-radius maple fingerboard with 21 vintage-style frets.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck with walnut "skunk" stripe
- Maple fingerboard with 7.25" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- 3/16" truss rod nut
- Six tuning machine holes designed to fit vintage-style two-screw-mount tuning machines
Specs
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage-Style
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Soft "V"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .900” (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
