Color
Natural
Orientation
Right-Hand
Product Name

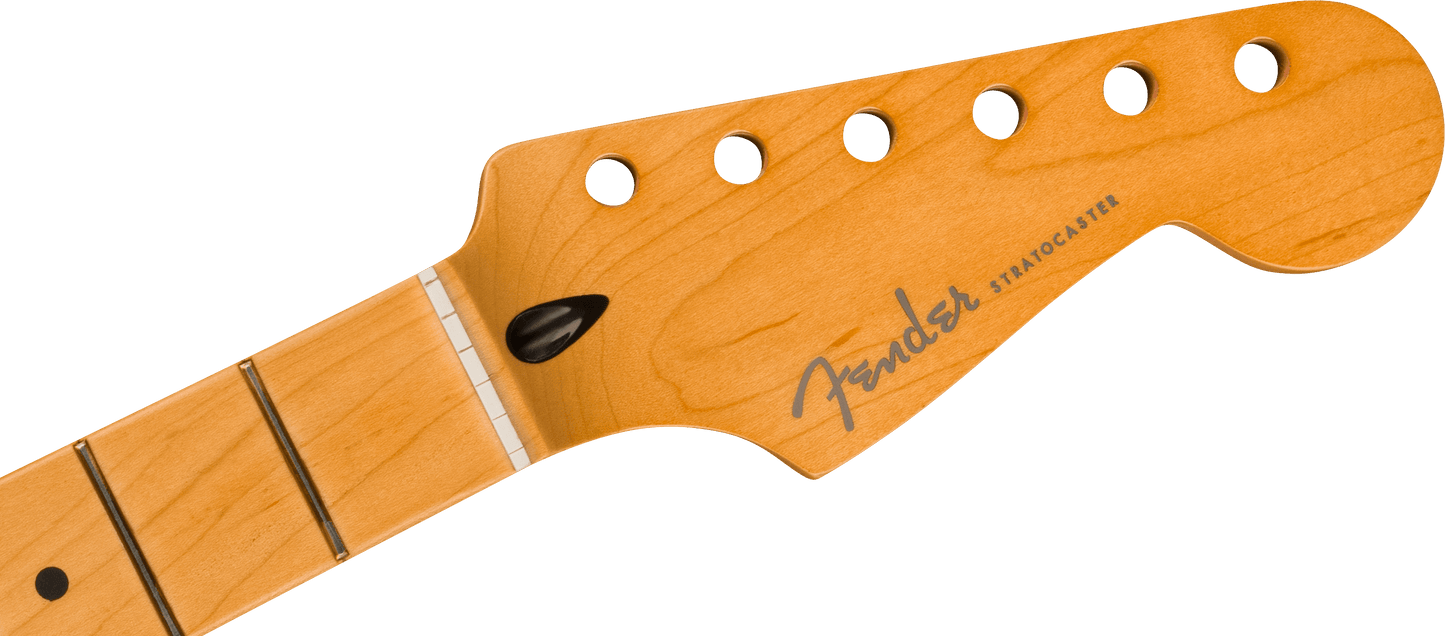

Player Plus Stratocaster® Neck, 12" Radius, 22 Medium Jumbo Frets, Maple Fingerboard
Series
Necks
Player Plus Stratocaster® Neck, 12" Radius, 22 Medium Jumbo Frets
Regular price
309,00 €
Regular price
309,00 €
309,00 €
Sale price
Unit price
per
RRP inc. VAT*
Player Plus Stratocaster® Neck, 12" Radius, 22 Medium Jumbo Frets
Player Plus Stratocaster® Neck, 12" Radius, 22 Medium Jumbo Frets
Model #:
0997313921
Regular price
309,00 €
Regular price
309,00 €
309,00 €
Sale price
Unit price
per
RRP inc. VAT*
- Maple neck with walnut "skunk" stripe
- Maple or pau ferro fingerboard with 12" radius and 22 medium jumbo frets
- Satin urethane finish on front and back of neck with gloss headstock front
- Rolled fingerboard edges
- Pre-slotted synthetic bone nut
- Single action, head adjust
- Six two-guide-pin tuning machine holes
Couldn't load pickup availability
Details
Summary
Overview
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Player Plus Series Stratocaster® guitar neck features a silky satin Modern "C" shape that fits your hand like a glove, with smooth rolled edges for supreme comfort. The 12" radius fingerboard and 22 medium jumbo frets facilitate fluid leads and choke free bends.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a satin urethane finish offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck with walnut "skunk" stripe
- Maple or pau ferro fingerboard with 12" radius and 22 medium jumbo frets
- Satin urethane finish on front and back of neck with gloss headstock front
- Rolled fingerboard edges
- Pre-slotted synthetic bone nut
- Single action, head adjust
- Six two-guide-pin tuning machine holes
Specs
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
12" (305 mm)
Neck Finish
Satin Urethane with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
Specs
General
Color
Natural
Orientation
Right-Hand
Product Name
Player Plus Stratocaster® Neck, 12" Radius, 22 Medium Jumbo Frets, Pau Ferro Fingerboard
Series
Necks
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
12" (305 mm)
Neck Finish
Satin Urethane with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
