Color
Natural
Orientation
Right-Hand
Product Name

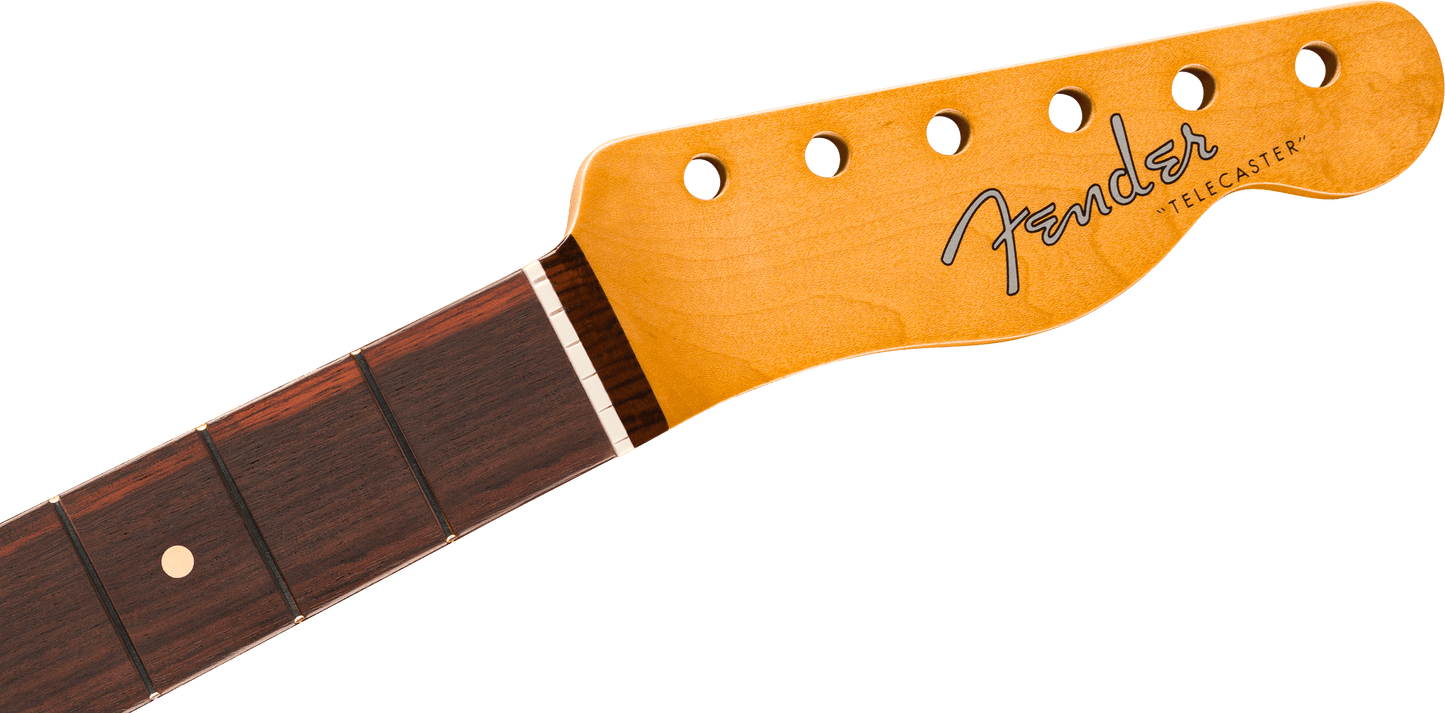

Vintera II 60's Telecaster® Neck, 21 Vintage Tall Frets, Rosewood, C Shape
Series
Fender® Parts
Vintera® II 60's Telecaster® Neck, 21 Vintage Tall Frets, Rosewood, C Shape
Regular price
449,00 €
Regular price
449,00 €
449,00 €
Sale price
Unit price
per
RRP inc. VAT*
Vintera® II 60's Telecaster® Neck, 21 Vintage Tall Frets, Rosewood, C Shape
Vintera® II 60's Telecaster® Neck, 21 Vintage Tall Frets, Rosewood, C Shape
Model #:
0999883921
Regular price
449,00 €
Regular price
449,00 €
449,00 €
Sale price
Unit price
per
RRP inc. VAT*
- Maple neck with early-'60s "C" shape
- Rosewood fingerboard with 7.25" radius
- 21 vintage tall frets; pre-slotted synthetic bone nut
- Vintage-style truss rod
- Six tuning machine holes designed to fit vintage-style two-screw-mount tuning machines
Couldn't load pickup availability
Details
Summary
Overview
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Vintera® II
Telecaster® neck features an early-'60s "C" shape neck based on a classic '60s profile for an intuitive and inviting feel. A 7.25" radius fingerboard with vintage-tall frets provides vintage comfort with ample room for big bends and expressive vibrato.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine Fender headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck with early-'60s "C" shape
- Rosewood fingerboard with 7.25" radius
- 21 vintage tall frets; pre-slotted synthetic bone nut
- Vintage-style truss rod
- Six tuning machine holes designed to fit vintage-style two-screw-mount tuning machines
Specs
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage Tall
Fret Wire Dimensions
0.083" (H) x 0.045" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
7.25" (184.1 mm)
Neck Binding
None
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Early '60s "C"
Neck Thickness
1st Fret - .830" (21.08 mm), 12th Fret - 1.00" (25.40 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
